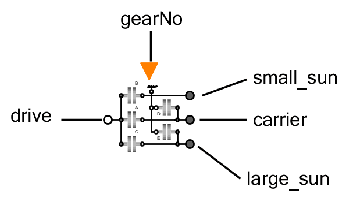

Clutch Arrangement for a 4-Speed Ravigneaux Gearbox

The Ravigneaux Actuation component is intended for use with a Ravigneaux Gear (see Ravigneaux Gear). The internal structure of this component is shown below. The combination of the clutches and the activation table, enables the user to easily create a 4-Speed Ravigneaux Gearbox.

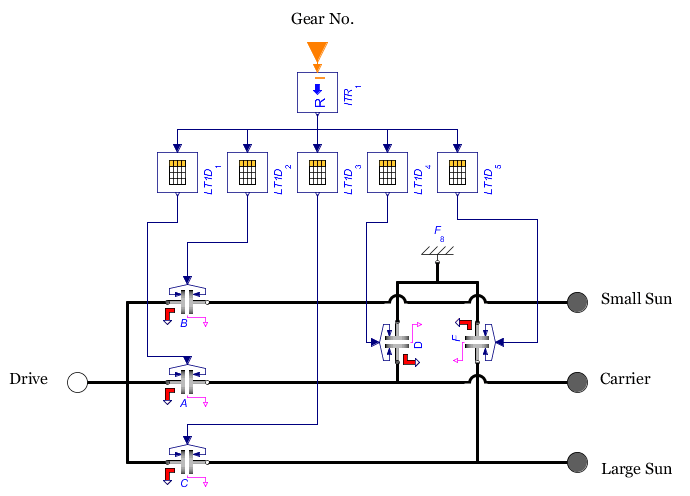

Internal Structure

Connections

Name	Condition	Description	ID
	-	Drive shaft Flange	drive
	-	Small Sun flange (to be connected to small sun flange of a Ravigneaux Gear)	small_sun
	-	Carrier flange (to be connected to carrier flange of a Ravigneaux Gear)	sun
	-	Large sun flange (to be connected to large sun flange of a Ravigneaux Gear)	large_sun
	-	Integer input for the gear number. (-1: Revese, 0: Neutral, 1,2,3,4: Forward)	GearNo

Parameters

Symbol	Condition	Default	Units	Description	ID
	-			Added inertia to Clutch components.	J
	-			A 6 by 6 clutch actuation table. first column is for the gear numbers (not used) ordered from -1 (reverse) to 4 (forth gear). Zeroth gear designates neutral.	table
Clutch Parameters	See Clutch componet for the description of the clutch parameters.
