PartiallyOrderedSets/MaximalChains

All Products Maple MapleSim

Home : Support : Online Help : PartiallyOrderedSets/MaximalChains

PartiallyOrderedSets

MaximalChains

returns all the maximal chains of a poset

	Calling Sequence
	MaximalChains(P) MaximalChains(P,opts)

Parameters

P	-	PartiallyOrderedSet
opts	-	(optional) option of the form output = o, where o is list or iterator

Description

•	The command MaximalChains(P) returns the maximal chains of the partially ordered set P.

•

By default, the chains are returned as a list of lists. If the option output = iterator is passed to the MaximalChains command, the chains are returned as an iterator; that is, an object that can be used in a for loop or a seq command. Each iteration yields a chain as a list. This can be more efficient than returning a list of all chains if there are very, very many of them. The default list of lists can be explicitly selected by using the option output = list.

Remarks

•	MaximalAntichains will generate and store the transitive closure and adjacency list of P.

Terminology

•	A partially ordered set, or poset for short, is a pair (P, <=) where P is a set and <= is a partial order on P.

•	From now on, we fix a poset (P, <=).

•	A subset C of P is called a chain if any two elements of C are comparable. A chain C of P is said maximal if P does not admit another chain D of which C would be a proper subset.

•	A subset C of P is called an antichain if any two distinct elements of C are incomparable. An antichain C of P is said maximal if P does not admit another antichain D of which C would be a proper subset. We note that any singleton of P is both a chain and an antichain.

Examples

>	$with (PartiallyOrderedSets) &colon;$

>	$leq ≔ `<=` &colon;$

Create a poset from a set and a non-strict partial order

>	$S ≔ \{1, 2, 3, 4, 5\} &colon;$ $poset1 ≔ PartiallyOrderedSet (S, leq)$

$poset1 ≔ < a poset with 5 elements >$

(1)

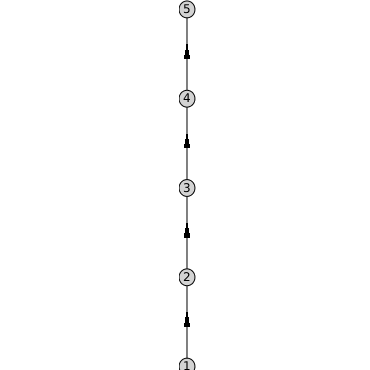

Display this poset

>	$DrawGraph (poset1)$

Compute the maximal chains of this poset

>	$MaximalChains (poset1)$

$[[1, 2, 3, 4, 5]]$

(2)

Create a poset from a set and a non-strict partial order

>	$divisibility ≔ (x, y) \mapsto irem (y, x) = 0 &colon;$ $T ≔ \{3, 4, 5, 6, 7, 8, 9\} &colon;$

>	$poset2 ≔ PartiallyOrderedSet (T, divisibility)$

$poset2 ≔ < a poset with 7 elements >$

(3)

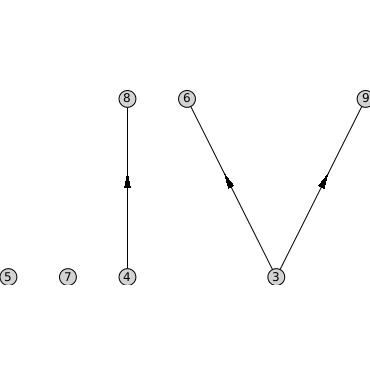

Display this poset

>	$DrawGraph (poset2)$

Compute the maximal chains of this poset

>	$MaximalChains (poset2)$

$[[3, 6], [3, 9], [4, 8], [5], [7]]$

(4)

Create a poset from a set and an adjacency matrix of a partial order regarded as a directed graph

>	$adjMatrix4 ≔ Matrix ([[1, 1, 1, 1, 1], [0, 1, 1, 1, 1], [0, 0, 1, 1, 1], [0, 0, 0, 1, 1], [0, 0, 0, 0, 1]])$

$adjMatrix4 ≔ [\begin{array}{c} 1 & 1 & 1 & 1 & 1 \\ 0 & 1 & 1 & 1 & 1 \\ 0 & 0 & 1 & 1 & 1 \\ 0 & 0 & 0 & 1 & 1 \\ 0 & 0 & 0 & 0 & 1 \end{array}]$

(5)

>	$poset4 ≔ PartiallyOrderedSet (convert (S,'list'), adjMatrix4)$

$poset4 ≔ < a poset with 5 elements >$

(6)

Display this poset

>	$DrawGraph (poset4)$

Compute the maximal chains of this poset

>	$MaximalChains (poset4)$

$[[1, 2, 3, 4, 5]]$

(7)

Create a poset from a set and an adjacency list of a partial order regarded as a directed graph

>	$adjList5 ≔ map2 (map, `+`, Array ([\{1, 4, 7\}, \{2, 6\}, \{3\}, \{4\}, \{5\}, \{6\}, \{7\}]), 2)$

$adjList5 ≔ [\begin{array}{c} \{3, 6, 9\} & \{4, 8\} & \{5\} & \{6\} & \{7\} & \{8\} & \{9\} \end{array}]$

(8)

>	$poset5 ≔ PartiallyOrderedSet (convert (T,'list'), adjList5)$

$poset5 ≔ < a poset with 7 elements >$

(9)

Display this poset

>	$DrawGraph (poset5)$

Compute the maximal chains of this poset

>	$MaximalChains (poset5)$

$[[3, 6], [3, 9], [4, 8], [5], [7]]$

(10)

Create a poset from a set and a directed graph

>	$G ≔ GraphTheory :- Graph (directed, [1, 2, 3, 4, 5, 6], \{[1, 1], [1, 2], [1, 3], [1, 4], [1, 5], [1, 6], [2, 2], [2, 4], [2, 6], [3, 3], [3, 5], [3, 6], [4, 4], [4, 6], [5, 5], [5, 6], [6, 6]\})$

$G ≔ Graph 1: a directed graph with 6 vertices, 11 arcs, and 6 self-loops$

(11)

>	$poset6 ≔ PartiallyOrderedSet (G)$

$poset6 ≔ < a poset with 6 elements >$

(12)

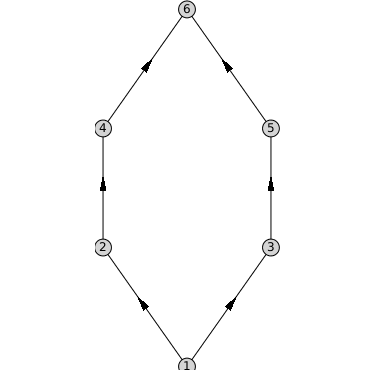

Display this poset

>	$DrawGraph (poset6)$

Compute the maximal chains of this poset

>	$MaximalChains (poset6)$

$[[1, 2, 4, 6], [1, 3, 5, 6]]$

(13)

Define a polyhedral set and get its dimension

>	$t ≔ PolyhedralSets :- ExampleSets :- Octahedron ()$

$t ≔ {\begin{array}{l} Coordinates & &colon; & [x_{1}, x_{2}, x_{3}] \\ Relations & &colon; & [- x_{1} - x_{2} - x_{3} \leq 1, - x_{1} - x_{2} + x_{3} \leq 1, - x_{1} + x_{2} - x_{3} \leq 1, - x_{1} + x_{2} + x_{3} \leq 1, x_{1} - x_{2} - x_{3} \leq 1, x_{1} - x_{2} + x_{3} \leq 1, x_{1} + x_{2} - x_{3} \leq 1, x_{1} + x_{2} + x_{3} \leq 1] \end{array}$

(14)

>	$d ≔ PolyhedralSets :- Dimension (t)$

$d ≔ 3$

(15)

Collect the faces of this polyhedral set

>	$t_faces ≔ \{seq (op (PolyhedralSets :- Faces (t, dimension = i)), i = - 0 .. d)\} &colon;$

>	$t_faces ≔ t_faces union \{PolyhedralSets :- ExampleSets :- EmptySet (d)\} &colon;$

>	$FL ≔ convert (t_faces, list) &colon;$

Construct the face lattice of that polyhedral set

>	inclusion := proc(x,y) PolyhedralSets:-`subset`(FL[x],FL[y]) end proc:

>	$polyhedral_poset ≔ PartiallyOrderedSet (\{seq (i, i = 1 .. nops (FL))\}, inclusion)$

$polyhedral_poset ≔ < a poset with 28 elements >$

(16)

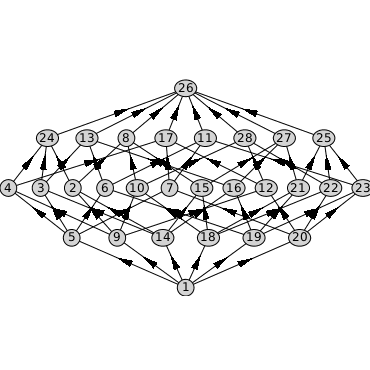

Display this poset

>	$DrawGraph (polyhedral_poset)$

Compute the maximal chains of this poset

>	$MaximalChains (polyhedral_poset)$

$[[1, 5, 3, 13, 26], [1, 5, 3, 24, 26], [1, 5, 4, 17, 26], [1, 5, 4, 24, 26], [1, 5, 6, 11, 26], [1, 5, 6, 13, 26], [1, 5, 7, 11, 26], [1, 5, 7, 17, 26], [1, 9, 2, 8, 26], [1, 9, 2, 24, 26], [1, 9, 4, 17, 26], [1, 9, 4, 24, 26], [1, 9, 10, 8, 26], [1, 9, 10, 28, 26], [1, 9, 12, 17, 26], [1, 9, 12, 28, 26], [1, 14, 2, 8, 26], [1, 14, 2, 24, 26], [1, 14, 3, 13, 26], [1, 14, 3, 24, 26], [1, 14, 15, 8, 26], [1, 14, 15, 27, 26], [1, 14, 16, 13, 26], [1, 14, 16, 27, 26], [1, 18, 10, 8, 26], [1, 18, 10, 28, 26], [1, 18, 15, 8, 26], [1, 18, 15, 27, 26], [1, 18, 21, 25, 26], [1, 18, 21, 27, 26], [1, 18, 22, 25, 26], [1, 18, 22, 28, 26], [1, 19, 6, 11, 26], [1, 19, 6, 13, 26], [1, 19, 16, 13, 26], [1, 19, 16, 27, 26], [1, 19, 21, 25, 26], [1, 19, 21, 27, 26], [1, 19, 23, 11, 26], [1, 19, 23, 25, 26], [1, 20, 7, 11, 26], [1, 20, 7, 17, 26], [1, 20, 12, 17, 26], [1, 20, 12, 28, 26], [1, 20, 22, 25, 26], [1, 20, 22, 28, 26], [1, 20, 23, 11, 26], [1, 20, 23, 25, 26]]$

(17)

Create a poset from a set and an adjacency matrix of a partial order regarded as a directed graph

>	$M ≔ Matrix ([[1, 1, 1, 1, 1], [0, 1, 1, 0, 1], [0, 0, 1, 0, 1], [0, 0, 0, 1, 1], [0, 0, 0, 0, 1]]) &colon;$

>	$poset9 ≔ PartiallyOrderedSet ([seq (1 .. 5)], M)$

$poset9 ≔ < a poset with 5 elements >$

(18)

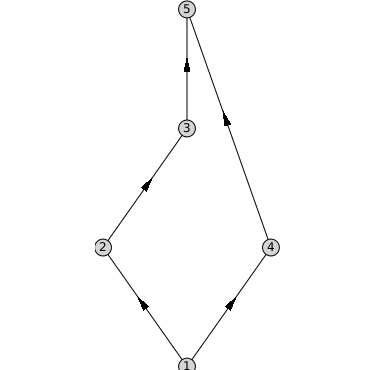

Display this poset

>	$DrawGraph (poset9)$

Compute the maximal chains of this poset

>	$MaximalChains (poset9)$

$[[1, 2, 3, 5], [1, 4, 5]]$

(19)

We can examine these chains one by one by using the iterator output:

>	$for chain in MaximalChains (poset9, output = iterator) do printf (Chain of length %d: %a\n, numelems (chain), chain) end do &colon;$

Chain of length 4: [1, 2, 3, 5]
Chain of length 3: [1, 4, 5]

Create a poset from a set and a non-strict partial order

>	$Z ≔ \{1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30, 60\}$

$Z ≔ \{1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30, 60\}$

(20)

>	$poset10 ≔ PartiallyOrderedSet (Z, divisibility)$

$poset10 ≔ < a poset with 12 elements >$

(21)

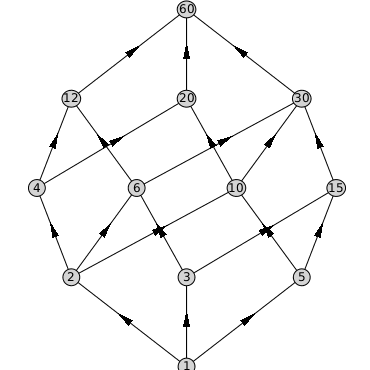

Display this poset

>	$DrawGraph (poset10)$

Compute the maximal chains of this poset

>	$MaximalChains (poset10)$

$[[1, 2, 4, 12, 60], [1, 2, 4, 20, 60], [1, 2, 6, 12, 60], [1, 2, 6, 30, 60], [1, 2, 10, 20, 60], [1, 2, 10, 30, 60], [1, 3, 6, 12, 60], [1, 3, 6, 30, 60], [1, 3, 15, 30, 60], [1, 5, 10, 20, 60], [1, 5, 10, 30, 60], [1, 5, 15, 30, 60]]$

(22)

Create a poset from a set and a non-strict partial order

>	$ZZ ≔ \{1, 2, 3, 4, 5, 6, 12, 15, 60\}$

$ZZ ≔ \{1, 2, 3, 4, 5, 6, 12, 15, 60\}$

(23)

>	$poset11 ≔ PartiallyOrderedSet (ZZ, divisibility)$

$poset11 ≔ < a poset with 9 elements >$

(24)

Display this poset

>	$DrawGraph (poset11)$

Compute the maximal chains of this poset

>	$MaximalChains (poset11)$

$[[1, 2, 4, 12, 60], [1, 2, 6, 12, 60], [1, 3, 6, 12, 60], [1, 3, 15, 60], [1, 5, 15, 60]]$

(25)

References

Richard P. Stanley: Enumerative Combinatorics 1. 1997, Cambridge Studies in Advanced Mathematics. Vol. 49. Cambridge University Press.

Compatibility

•	The PartiallyOrderedSets[MaximalChains] command was introduced in Maple 2025.

•	For more information on Maple 2025 changes, see Updates in Maple 2025.
