PartiallyOrderedSets



Rank



returns the rank of a poset, or the rank of an element of a poset



Calling Sequence

Parameters

Description

Examples

References

Compatibility

Calling Sequence

Rank(P)

Rank(P,E)

Parameters

P

-

PartiallyOrderedSet

E

-

element of the PartiallyOrderedSet P

Description

•

The command Rank(P) returns the rank of the partially ordered set P.

•

The command Rank(P,E) returns the rank of the element E in partially ordered set P.

Remarks

•

Rank will generate and store the transitive reduction of P.

•

The rank function will be generated and stored if P is graded.

Terminology

•

A partially ordered set, or poset for short, is a pair (P, <=) where P is a set and <= is a partial order on P.

•

From now on, we fix a poset (P, <=). Two elements a and b of P are said comparable if either a <= b or  b <= a holds, otherwise a and b are said incomparable.

•

A subset C of P is called a chain if any two elements of C are comparable. A chain C of P is said maximal if P does not admit another chain D of which C would be a proper subset.

•

A subset C of P is called an antichain if any two distinct elements of C are incomparable. An antichain C of P is said maximal if P does not admit another antichain D of which C would be a proper subset. We note that any singleton of P is both a chain and an antichain.

•

The element a of P is strictly less than the element b of P if a <= b and a \342\211\240 b both hold.

•

The element b  of P covers the element a of P if a  is strictly less than b and for no element c of P, distinct from both a and b, both a <= c and c <= b hold.

•

Let S be a subset of P and a be an element of S. We say that a is a greatest element (resp. least element) of S if for every element b  of S we have b  <= a (resp. a <= b). Observe that if S has a greatest element (resp. least element) then it is unique.

•

We say that a is an upper bound (resp. lower bound) of S if if for every element b  of S we have b  <= a (resp. a <= b). Observe that a need not be  in S in order to be an upper bound (resp. lower bound) of S.

•

We say that a is the infimum of S, or the greatest lower bound of S, if a  is the greatest element among all lower bounds of S.

•

We say that a is the supremum of S, or the lest upper bound of S, if a  is the least element among all upper bounds of S.

•

From now on, we assume that P is finite.

•

We call rank function on the poset (P, <=) any function r defined on P, taking integer values and so that for any two elements a and b of P, if b covers a then r(b) = r(a) + 1 holds.

•

The poset (P, <=)  is said graded if it admits a rank function.

•

The poset (P, <=)  is said ranked if all its maximal chains have the same cardinality.

•

We note that the terms graded poset  and ranked poset have slightly different definitions in some textbooks, like the ones of  Richard Stanley. We refer to the wikipedia pages of ranked poset and graded poset for a discussion on these terminology issues.

Examples

withPartiallyOrderedSets&colon;

Create a poset from a set and a non-strict partial order

divisibilityx&comma;yiremy&comma;x=0&colon;T3&comma;4&comma;5&comma;6&comma;7&comma;8&comma;9&colon;

poset2PartiallyOrderedSetT&comma;divisibility

poset2< a poset with 7 elements >

(1)

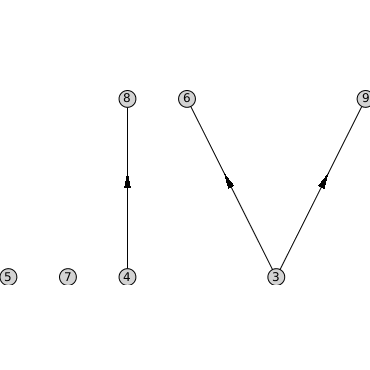

Display this poset

DrawGraphposet2

Compute the rank of an element in this poset

Rankposet2&comma;4

0

(2)

Compute the rank of an element in this poset

Rankposet2&comma;8

1

(3)

Define a polyhedral set and get its dimension

tPolyhedralSets:-ExampleSets:-Octahedron

t&lcub;Coordinates&colon;x1&comma;x2&comma;x3Relations&colon;x1x2x31&comma;x1x2+x31&comma;x1+x2x31&comma;x1+x2+x31&comma;x1x2x31&comma;x1x2+x31&comma;x1+x2x31&comma;x1+x2+x31

(4)

dPolyhedralSets:-Dimensiont

d3

(5)

Collect the faces of this polyhedral set

t_facesseqopPolyhedralSets:-Facest&comma;dimension=i&comma;i=0..d&colon;

t_facest_facesunionPolyhedralSets:-ExampleSets:-EmptySetd&colon;

FLconvertt_faces&comma;list&colon;

Construct the face lattice of that polyhedral set

inclusion := proc(x,y) PolyhedralSets:-`subset`(FL[x],FL[y]) end proc:

polyhedral_posetPartiallyOrderedSetseqi&comma;i=1..nopsFL&comma;inclusion

polyhedral_poset< a poset with 28 elements >

(6)

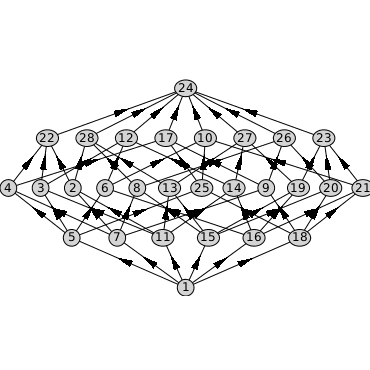

Display this poset

DrawGraphpolyhedral_poset

Compute its rank

Rankpolyhedral_poset

4

(7)

Create a poset from a set and a non-strict partial order

Z1&comma;2&comma;3&comma;4&comma;5&comma;6&comma;10&comma;12&comma;15&comma;20&comma;30&comma;60

Z1&comma;2&comma;3&comma;4&comma;5&comma;6&comma;10&comma;12&comma;15&comma;20&comma;30&comma;60

(8)

poset10PartiallyOrderedSetZ&comma;divisibility

poset10< a poset with 12 elements >

(9)

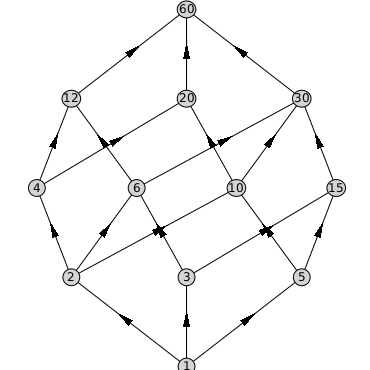

Display this poset

DrawGraphposet10

Compute its rank

Rankposet10

4

(10)

References



Richard P. Stanley: Enumerative Combinatorics 1. 1997, Cambridge Studies in Advanced Mathematics. Vol. 49. Cambridge University Press.

Compatibility

•

The PartiallyOrderedSets[Rank] command was introduced in Maple 2025.

•

For more information on Maple 2025 changes, see Updates in Maple 2025.
