Generate trapezoidal signal of type Real
Modelica Standard Library

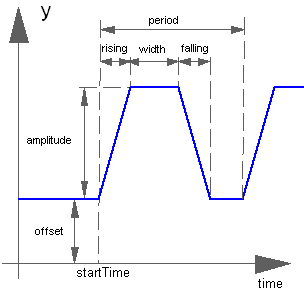

The Trapezoid component has a real output that is a trapezoid signal.
The alternating boolean parameter, when true, causes the sign of the output to alternate from one period to the next.
Real output signal
True (checked) means amplitude alternates sign
Amplitude of trapezoid
Offset of output signal
Time offset of the signal
Rising duration of trapezoid
Falling duration of trapezoid
Time for one period
Width duration of trapezoid
Number of periods (negative means infinite number of periods)
