Magnetic Material with Parameter-based Hysteresis



Description

Parameters

Modelica Standard Library

Description

This magnetic material uses Everett functions to define the B-H hysteresis curve.

This material can be used by the TellinenEverett component in the Magnetic > Shapes > Hysteresis palette; the instance name of material should be copied to the material (mat) parameter of the component, and possibly used in the sigma (σ) parameter, if eddy currents are modeled.

Parameters

Name

Units

Description

Modelica ID

Hc

Am

Major loop coercivity

Hc

Hsat

Am

Hysteresis region is Hsat to Hsat

Hsat

K

1

Slope in saturation region is μ0K_

K

M

1

Related to saturation value of magnetization

M

p1

mA

Sharpness of major loop

p1

p2

mA

Sharpness of major loop

p2

q

mA

Slope of the straight region in the vicinity of Hc

q

r

1

Proportion of the straight region in the vicinity of Hc

r

σ

Sm

Electrical conductivity of material

sigma

Data

Material

Hc

Hsat

K

M

p1

p2

q

r

σ

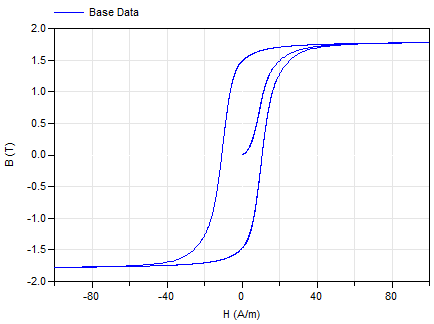

BaseData

7.4

100

1

0.95

0.12

0.80

0.24

0.55

1

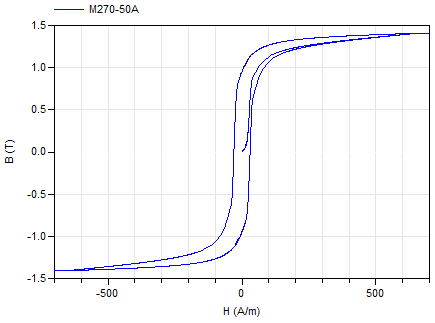

M270 50A

24.4948

650

50

0.981

0.486

5.49·10−4

0.0273

0.429

1.72·106

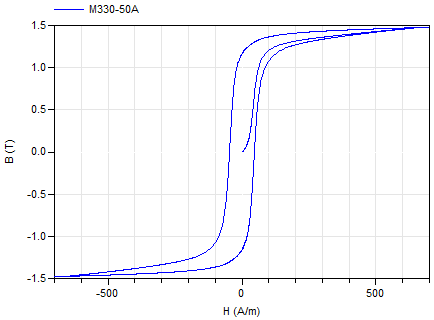

M330 50A

42.2283

650

50

0.967

0.188

7.81·10−4

0.04

0.503

2.2·106

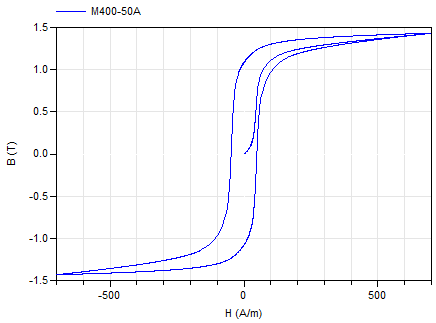

M400 50A

43.2967

700

50

0.966

0.299

7.57·10−4

0.0278

0.442

2.22·106

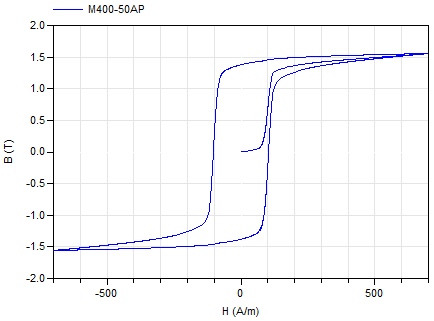

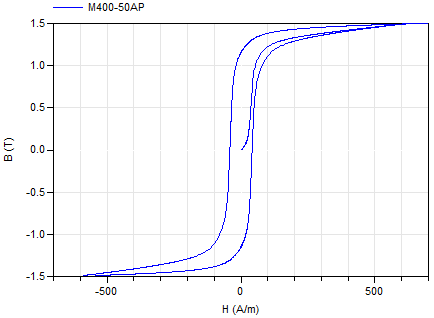

M400 50AP

36.204

600

50

1.0013

0.318

7.59·10−4

0.0343

0.427

2.22·106

M800 65A

100.0602

700

50

1.1461

0.183

4.25·10−4

0.013

0.161

3.27·106

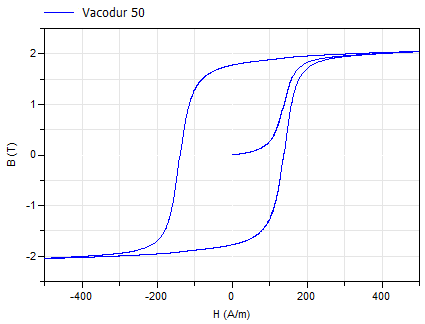

Vacodur 50

133.5844

800

160

1.002

0.796

8.98·10−3

0.0523

1.0835

2.38·106

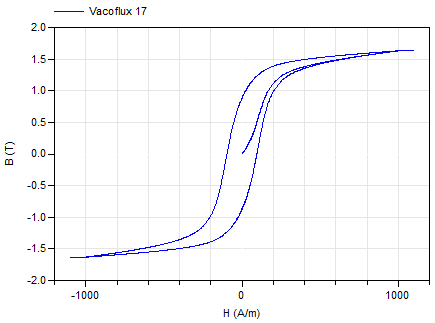

Vacoflux 17

98.0842

1000

110

0.92

0.0164

1.05·10−3

0.0158

0.728

2.56·106

B-H Curves

Modelica Standard Library

The component described in this topic is from the Modelica Standard Library. To view the original documentation, which includes author and copyright information, click here.
