Variable Thermal Conductor
Multiple Variable Thermal Conductor with normalized contact area ratio of each node, input from real vector signals.
The Variable Thermal Conductor component is used for connecting two Multi- components.
This component can take account of normalized contact area ratio between port_a and port_b input from real vector signal, Ac.

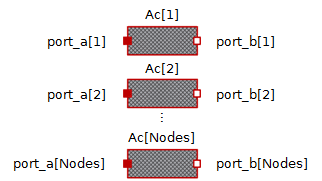

The following image illustrates the behavior of the Variable Thermal Conductor component.
Gi= Material.k⋅A L⋅AciAci>0G__offelse
Heat conductance G__off is used for the heat path without heat flow.
(For details, see Thermal Conductor help).
i-th heat flow rate from port a to port b
i-th temperature difference between port a[i] and port b[i]
i-th constant thermal conductance of material
(For details, see Thermal Conductor
i-th thermal port of port a side
The total number of i is determined by Nodes of a
i-th thermal port of port b side
The total number of i is determined by Nodes of b
Coefficient of normalized contact area ratio (0 to1)
The total number of i is determined by Nodes
Solid material property data
Material.k is the thermal conductivity of the material
Material.cp is the specific heat capacity of the material
Material.rho is the density of the material
Number of nodes
Area of the contact surface between nodes
Distance between nodes
Optional. Constant thermal conductance of material which is used for representing the path without heat flow
