Rigid Body Frame
A frame with a fixed displacement and orientation relative to a rigid body center of mass (CoM) frame
A Rigid Body Frame is a body-fixed frame that is used to define locations of interest on the body where it is connected (for example, locations where it connects to other bodies). The position and orientation relative to the center of mass must be defined for each body-fixed frame.

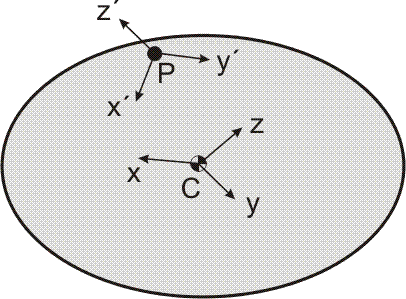

The position of the body-fixed x'y'z' frame relative to the center of mass xyz frame, both shown in the diagram below, is defined by the translational position vector from C to P, resolved into components along the center of mass x,y, and z axes. The orientation of x'y'z' with respect to xyz can be defined by the rotation transformation matrix between the two, or by a rotation about one or more of the x, y, or z axes.
|
Connections
|
|
Name
|
Description
|
|
Base of rigid body frame. This should be attached to a rigid body center of mass frame.
|
|
Tip of rigid body frame
|
|
|
|
|
Parameters
|
|
Symbol
|
Default
|
Units
|
Description
|
Modelica ID
|
|
|
|
The x,y,z offset of the outboard frame with respect to the inboard frame
|
InitPos
|
|
Euler Angles
|
|
Indicates whether the rotation matrix, , or the rotation sequence, , is used to express the orientation of the outboard frame with respect to the inboard frame
|
RSelect
|
|
|
|
The rotation matrix that transforms a vector expressed in the outboard frame to the inboard frame
|
RMat
|
|
|
|
Indicates the sequence of subsequent rotations describing the orientation of the outboard frame with respect to the inboard frame. For example, refers to sequential rotations about the x, then y, then z axis (123 - Euler angles)
|
RotType
|
|
|
|
Rotations about the axes selected in
|
InitAng
|
|
|
|
|
