 rectangle - Maple Help

plottools

 rectangle
 generate 2-D plot object for a rectangle Calling Sequence rectangle([x1, y1], [x2, y2], options) Parameters

 [x1, y1] - one corner of the rectangle [x2, y2] - the opposite corner of the rectangle options - (optional) equations of the form option=value. For a complete list, see plot/options. Description

 • The rectangle command creates a two-dimensional plot data object, which when displayed is a rectangle with corners at [x1,y1] and [x2,y2].
 • The plot data object produced by the rectangle command can be used in a PLOT data structure, or displayed using the plots[display] command.
 • Remaining arguments are interpreted as options, which are specified as equations of the form option = value. For more information, see plottools and plot/options. Examples

 > $\mathrm{with}\left(\mathrm{plottools}\right):$
 > $\mathrm{with}\left(\mathrm{plots}\right):$

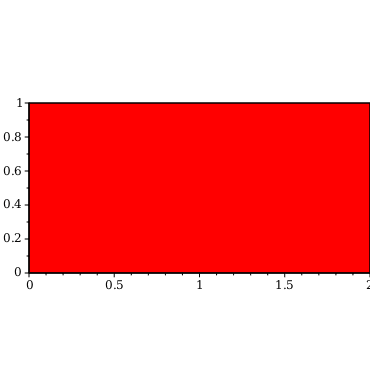

 > $\mathrm{display}\left(\mathrm{rectangle}\left(\left[0,1\right],\left[2,0\right],\mathrm{color}=\mathrm{red}\right),\mathrm{scaling}=\mathrm{constrained}\right)$
