Multiple Plots



Calling Sequence

Parameters

Description

Examples

Calling Sequence

plot({f1, f2,...}, h, v, options)

plot([f1, f2,...], h, v, options)

plot3d([f1, f2,...], h, v, options)

plot3d({f1, f2,...}, h, v, options)

Parameters

f1, f2, ...

-

functions to be plotted

h

-

horizontal range

v

-

vertical range, optional for plot

options

-

any of the optional arguments specified in plot/options

Description

•

When plot or plot3d is passed a set or list of functions, it plots all of these functions on the same graph.

•

When a list of three functions is passed to plot3d, Maple displays a 3-D parametric plot.  For more information, see plot3d.  To avoid this, add the three functions as a set.

•

When a list of functions is plotted, options may be associated with each function.  Options are specified as option=[value1, value2, ..., valuen] with one value for each curve plotted.

•

Unless otherwise specified, the curves are colored using the current list of plotting colors (see plots[setcolors]).

Examples

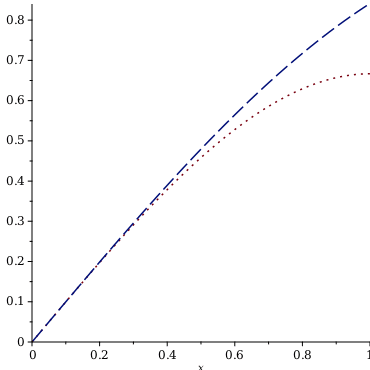

plotxx33,sinx,x=0..1,linestyle=dot,dash

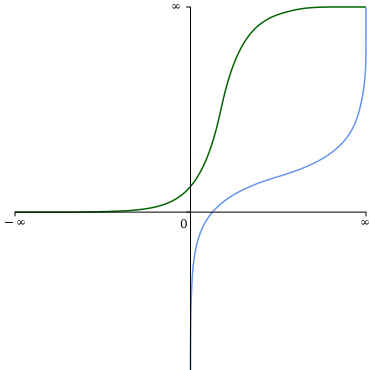

plotexp,ln,..,color=DarkGreen,CornflowerBlue

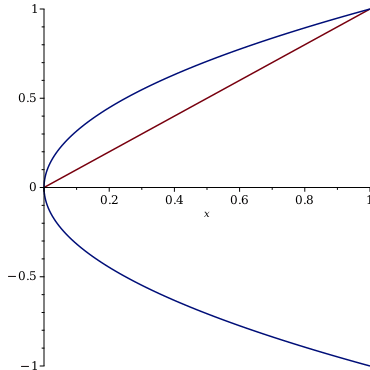

plotx,t2,t,t=1..1,x=0..1

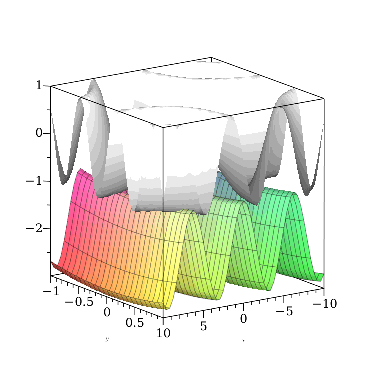

plot3dcosx2cos0.4y,sinxy,x=10..10,y=1..1,style=PATCH,PATCHNOGRID,shading=DEFAULT,ZGRAYSCALE,lightmodel=light1

See Also

plot/function

plot/options

plot/range
