Solving Triangles with Heron's Formula and the Laws of Cosines

by Otto Wilke
otto_wilke@hotmail.com

This Maple program solves triangles with angles A, B, and C; opposite sides a, b, and c; and area K, given any three of the seven variables. Enter the three knowns as equations in the procedure call. Angles must be in radians.

This program uses the following three independent forms of the Law of Cosines:

> a^2=b^2+c^2-2*b*c*cos(A);
b^2=a^2+c^2-2*a*c*cos(B);
c^2=b^2+a^2-2*b*a*cos(C);

and Heron's formula for area,

> K=sqrt((a+b+c)/2*((a+b+c)/2-a)*((a+b+c)/2-b)*((a+b+c)/2-c));

along with the three equations stating the known values, to form a set of seven
equations in seven unknowns.

The program discards negative and complex solutions of the set of equations. The output also gives angles in degrees and draws the triangle.

> tsolve[v1]:=proc(eq1,eq2,eq3)

local previous, nprevious, posreal, m, p1, p2, p3, p4, p5, p6, p7, A2, B2, C2,
Arad, Brad, n, printcount, Crad, sidec, sideb, opcount, rhsvalue;

#The 3 forms of the law of cosines and Heron's equation

[solve({eq1,eq2,eq3,a^2=b^2+c^2-2*b*c*cos(A),b^2=a^2+c^2-2*a*c*cos(B),c^2=b^2+a^2-2*b*a*cos(C),K=sqrt((a+b+c)/2.*((a+b+c)/2.-a)*((a+b+c)/2.-b)*((a+b+c)/2.-c))},{a,b,c,A,B,C,K})]:

#convert answers to list form for manipulation

previous:=convert(%,list):printcount:=0:
for n from 1 to nops(previous) do
nprevious:=convert(op(n,previous),list):
posreal:=0:
for m from 1 to 7 do

#get degrees equivalents of radian answers

if (lhs(op(m,nprevious))=A) then
Arad:=rhs(op(m,nprevious)):
A2:=lhs(op(m,nprevious))=rhs(op(m,nprevious))*180./evalf(Pi)*degrees;
elif (lhs(op(m,nprevious))=B) then
Brad:=rhs(op(m,nprevious)):
B2:=lhs(op(m,nprevious))=rhs(op(m,nprevious))*180./evalf(Pi)*degrees;
elif (lhs(op(m,nprevious))=C) then
Crad:=rhs(op(m,nprevious)):
C2:=lhs(op(m,nprevious))=rhs(op(m,nprevious))*180./evalf(Pi)*degrees;
elif (lhs(op(m,nprevious))=c) then
sidec:=rhs(op(m,nprevious)):
elif (lhs(op(m,nprevious))=b) then
sideb:=rhs(op(m,nprevious)):
fi:

#eliminate negative and complex answers

rhsvalue:=rhs(op(m,nprevious)):
opcount:=nops(rhsvalue):
if opcount=1 then
if (rhsvalue <= 0 or signum(rhsvalue) <> 1) then
posreal:=posreal+1:fi:else
if (signum(rhsvalue) <> 1) then
posreal:=posreal+1:fi:fi:od:
if posreal = 0 then

#eliminate solutions where sum of angles exceeds 180 degrees

if ((rhs(A2)+rhs(B2)+rhs(C2))/degrees<=180+.01) then

#print results

print(nprevious);print(A2,B2,C2);printcount:=printcount+1:

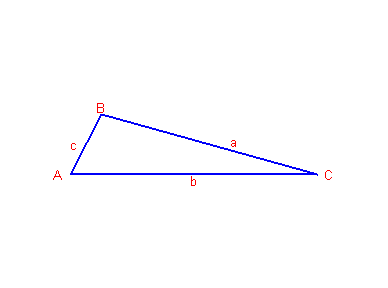

p1:=plot([[0,0],[sideb,0],[sidec*cos(Arad),sidec*sin(Arad)],[0,0]],style=line,color=blue,thickness=2,scaling=constrained):
with(plots):
p2:=textplot([-.05*sideb,0,`A`],align={Left},color=red):
p3:=textplot([sideb+.05*sideb,0,`C`],align={Right},color=red):
p4:=textplot([sidec*cos(Arad),sidec*sin(Arad)+.1*sidec,`B`],align={Above},color=red):
p5:=textplot([-.05*sideb+.5*sidec*cos(Arad),.5*sidec*sin(Arad),`c`],align={Left},color=red):
p6:=textplot([(sidec*cos(Arad)+sideb)*.5+.1*sideb,.55*sidec*sin(Arad),`a`],align={Above,Right},color=red):
p7:=textplot([.5*sideb,-.1*sidec*sin(Arad),`b`],align={Above},color=red):
print(display([p1,p2,p3,p4,p5,p6,p7],axes=none));
printf(`\n`);printf(`\n`);
fi:
fi:od:

#if no real positive solutions,say so

if printcount = 0 then
printf(`No possible triangle or no side given\n`);fi:
end:

> #example with 2 possible triangles
tsolve[v1](A=63*evalf(Pi)/180.,b=11,a=10);

Warning, the name changecoords has been redefined

> #example with 1 triangle
tsolve[v1](A=153*evalf(Pi)/180.,b=10,a=12);

> #example with side too short to form triangle
tsolve[v1](A=53*evalf(Pi)/180.,b=10,a=4);

No possible triangle or no side given

> #example with area as one of 3 inputs
tsolve[v1](c=15,b=12,K=54);

> #example with sum of angles > 180 degrees
tsolve[v1](b=24.9,A=(255+1/3)*evalf(Pi)/180.,a=22.8);

No possible triangle or no side given

>
