Section 11.5. The 2D-Heat Equation
Steady Flows

by Alain Goriely, goriely@math.arizona.edu,
(http://www.math.arizona.edu/~goriely)

Abstract: This section illustrates Section 11.5 in Kreyszig 's book (8th ed.)

Application Areas/Subjects: Engineering, Applied Mathematics

Keywords: Heat equation, 2D, steady flows, Fourier series
See Also:  Other Worksheets in the same package.

Prerequisites:  plots

Note:  Send me an e-mail (comments-criticisms) if you use this worksheet.

> restart;assume(n,integer):with(plots):
setoptions(thickness=2): #set the tickness of the lines in the plots

Warning, the name changecoords has been redefined

Introduction

In this worksheet, I use Maple to illustrate Section 11.5 of Kreyszig 's book: Advanced Engineering Mathematics.

Let u = u(x, y, t) be the temperature in a two dimensional media. The heat profile obeys the following PDEs
(the so-called 2D heat equation):

diff(u, t) = c^2*((diff(u, `$`(x, 2)))+(diff(u, `$`(y, 2))))

where c  is the diffusion constant  (c^2 = K/(sigma*rho) : themal conductivity/ (specific heat *density) )

We consider stationary profiles, that is time-independent solutions of the heat equations. These represent steady heat flows in 2D. Hence, we have, the LAPLACE EQUATION:

(diff(u, `$`(x, 2)))+(diff(u, `$`(y, 2))) = 0

We are looking for a steady flow in a rectangle in the (x, y ) plane with the following boundary conditions

u(0, y) = 0   and   u(a, y) = 0

u(x, 0) = 0   and   u(x, b) = f(x)

Here we explore different steady solutions of the heat equation in 2D, starting with initial heat profile on one side.


Look at the 3D Plots!

Section 1: The eigenfunctions

> Su:=u=(A[n]*sin(n*Pi*x/a)*sinh(n*Pi*y/a));

Su := u = A[n]*sin(n*Pi*x/a)*sinh(n*Pi*y/a)

Let us verify that this is indeed a solution of the equation:

> Diff(u,x$2) + Diff(u,`$`(y,2))=eval(subs(Su,diff(u,`$`(x,2))+diff(u,`$`(y,2))));

(Diff(u, `$`(x, 2)))+(Diff(u, `$`(y, 2))) = 0

We want to see what these modes look like: Start with n=1, the FUNDAMENTAL solution:

The fundamental eigenfunction

> M1:=subs(n=1,a=2*Pi,b=Pi,c=2,subs(Su,A[n]=1,u));

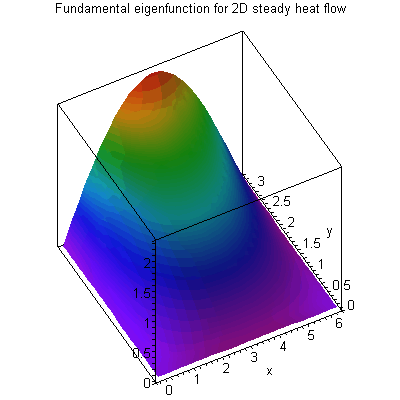

> plot3d( M1,x=0..2*Pi,y=0..Pi,shading=zhue,title="Fundamental eigenfunction for 2D steady heat flow",orientation=[-118,43],axes=boxed,style=patchnogrid,lightmodel=light2);

M1 := sin(1/2*x)*sinh(1/2*y)

[Plot]

The other eigenfunctions

> M1:=subs(n=2,a=2*Pi,b=Pi,c=2,subs(Su,A[n]=1,u));

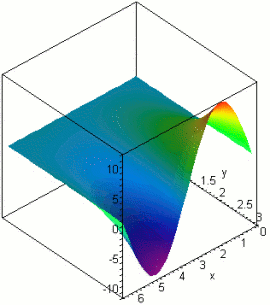

> plot3d( M1,x=0..2*Pi,y=0..Pi,shading=zhue,title="n=2 eigenfunction for 2D steady heat flow",orientation=[48,53],axes=boxed,style=patchnogrid,lightmodel=light2);

M1 := sin(x)*sinh(y)

[Plot]

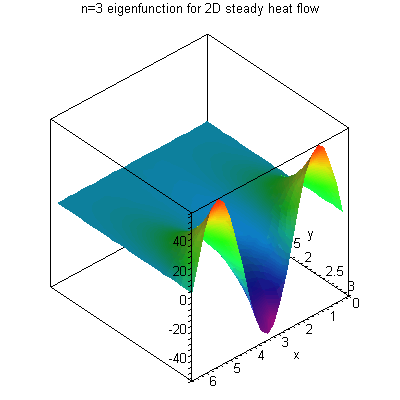

> M1:=subs(n=3,a=2*Pi,b=Pi,c=2,subs(Su,A[n]=1,u));

> plot3d( M1,x=0..2*Pi,y=0..Pi,shading=zhue,title="n=3 eigenfunction for 2D steady heat flow",orientation=[48,53],axes=boxed,style=patchnogrid,lightmodel=light2);

M1 := sin(3/2*x)*sinh(3/2*y)

[Plot]

The modes n >1 all have a negative part. Therefore, as such they are not physical solutions of the heat equations. However, the superposition of these eigenfunctions are solutions (as long as 0 < u(x, y) ).

Section 2: An example of a symmetric profile

We now take a simple profile for f(x) and look at the steady flow"

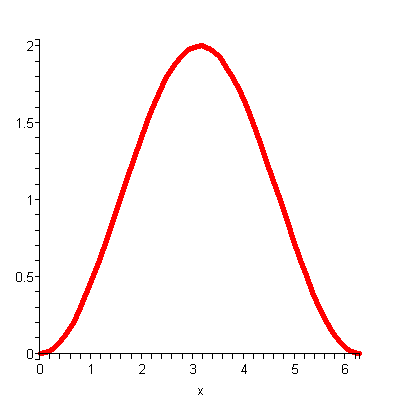

> f(x)=(1-cos(x));plot((1-cos(x)),x=0..2*Pi,thickness=3);

f(x) = 1-cos(x)

[Plot]

> A:=2/(2*Pi*sinh(m*Pi*Pi/2/Pi))*int((1-cos(x))*sin(m*x/2),x=0..2*Pi);

A := 8*(-1+cos(m*Pi))/(Pi*sinh(1/2*m*Pi)*m*(m^2-4))

> S:=(N,x)->subs(m=1,A)*sin(x/2)*sinh(y/2)+
         sum(subs(m=k,A)*sin(k*x/2)*sinh(k*y/2),k=3..N):
St:=S(10,x):

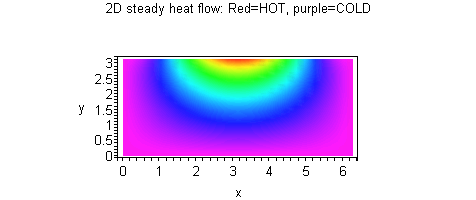

> plot3d( St,x=0..2*Pi,y=0..Pi,shading=zhue,title="2D steady heat flow: Red=HOT, purple=COLD",orientation=[-90,0],axes=boxed,style=patchnogrid);

[Plot]

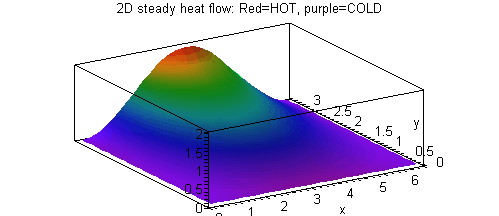

> plot3d( St,x=0..2*Pi,y=0..Pi,shading=zhue,title="2D steady heat flow: Red=HOT, purple=COLD",orientation=[-122,44],axes=boxed,style=patchnogrid,lightmodel=light2);

[Plot]

Section 3: An asymmetric profile

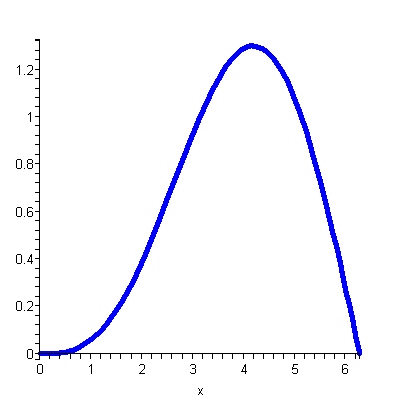

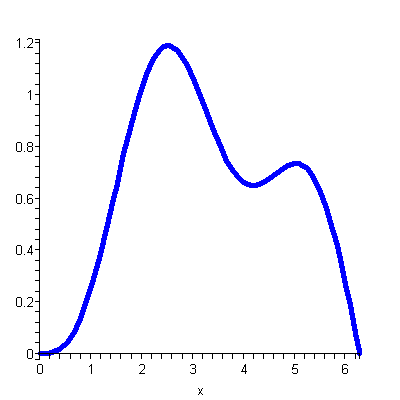

> f:=(sin(x/2)-1/2*sin(x));plot(f,x=0..2*Pi,thickness=3,color=blue);

f := sin(1/2*x)-1/2*sin(x)

[Plot]

> A1:=1/sinh(Pi/2):A2:=-1/2/sinh(Pi):S:=A1*sin(x/2)*sinh(y/2)+A2*sin(x)*sinh(y);

S := sin(1/2*x)*sinh(1/2*y)/sinh(1/2*Pi)-1/2*sin(x)*sinh(y)/sinh(Pi)

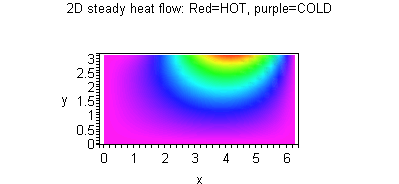

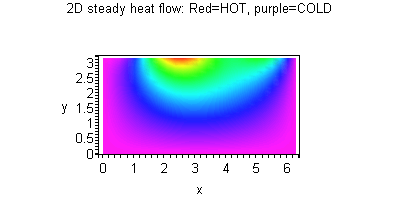

> plot3d( S,x=0..2*Pi,y=0..Pi,shading=zhue,title="2D steady heat flow: Red=HOT, purple=COLD",orientation=[-90,0],axes=boxed,style=patchnogrid);

[Plot]

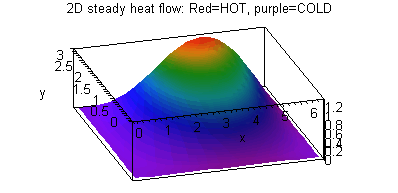

> plot3d( S,x=0..2*Pi,y=0..Pi,shading=zhue,title="2D steady heat flow: Red=HOT, purple=COLD",orientation=[-107,38],axes=boxed,style=patchnogrid,lightmodel=light2);

[Plot]

Section 4: Another asymmetric profile

> f:=(sin(x/2)-1/4*sin(4*x/2));plot(f,x=0..2*Pi,thickness=3,color=blue);

f := sin(1/2*x)-1/4*sin(2*x)

[Plot]

> A1:=1/sinh(Pi/2):A4:=-1/4/sinh(4*Pi/2):A3:=-1/5/sinh(3*Pi/2):
A5:=1/5/sinh(5*Pi/2):
S:=A1*sin(x/2)*sinh(y/2)+A4*sin(4*x/2)*sinh(4*y/2);

S := sin(1/2*x)*sinh(1/2*y)/sinh(1/2*Pi)-1/4*sin(2*x)*sinh(2*y)/sinh(2*Pi)

> plot3d( S,x=0..2*Pi,y=0..Pi,shading=zhue,title="2D steady heat flow: Red=HOT, purple=COLD",orientation=[-90,0],axes=boxed,style=patchnogrid);

[Plot]

> plot3d( S,x=0..2*Pi,y=0..Pi,shading=zhue,title="2D steady heat flow: Red=HOT, purple=COLD",orientation=[-107,38],axes=boxed,style=patchnogrid,lightmodel=light2);

[Plot]

>

References

E. Kreyszig : Advanced Engineering Mathematics (8th Edition) John Wiley  New York (1999)
